AeroForce OBD2 Ethanol Content and Fuel Temperature Sensor Kit for CAN bus vehicles.
- Works with 2008 and newer vehicles and others made prior using a CAN bus.

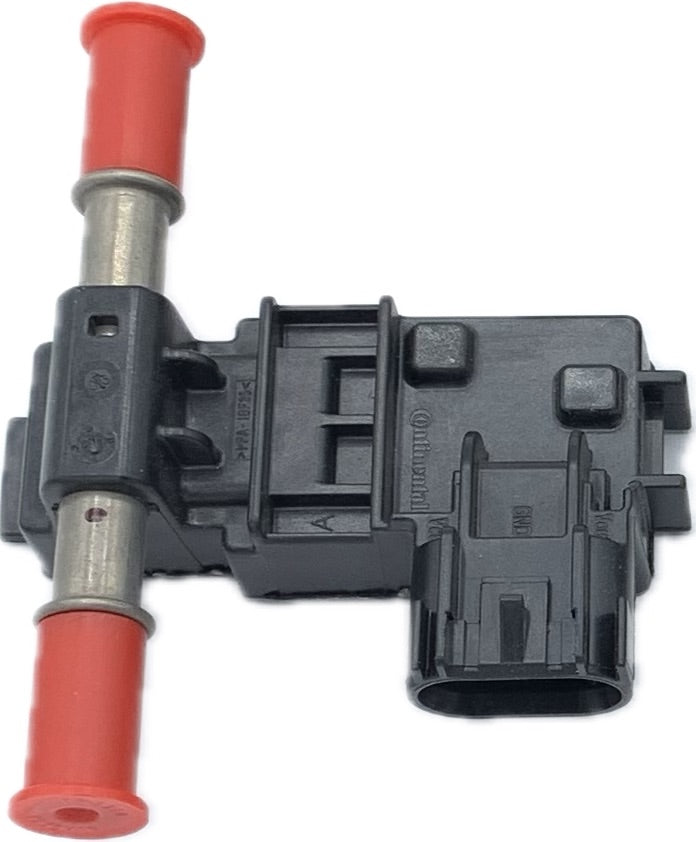

- Kit contains the GM/Continental ethanol sensor, 10' sensor to controller cable, controller, OBD2 pass thru cable, and power harness. Controller size is: 3"x 2"x 0.36".
- This kit injects the ethanol content and fuel temperature read from the sensor into the CAN bus data stream using the OBD2 pass thru cable.
- The kit's controller emulates an ECU using a CAN address that should work well on most CAN bus vehicles but can be changed by the user if there is a conflict.
- Can be used by aftermarket or piggyback tuning modules or ECMs, scantools, and OBD2 products such as our Interceptor scan gauge that can recognize this OBD2 parameter.
- Fuel Temperature range: -40 deg to 257 deg F
- Ethanol sensor accuracy: 3% of reading
Tuner Info:
- CAN bus ID 11 bit and 29 bit
- CAN bus ECU# 0x7E6 (default) but can be changed by user
- CAN bus PID 0x52
- CAN bus update rate 10Hz
- Data 0: Ethanol % = 8 bit
- Data 1: Fuel Temp (C) 8 bit -40
